Audi e-tron Rear Cupholder Installation Guide

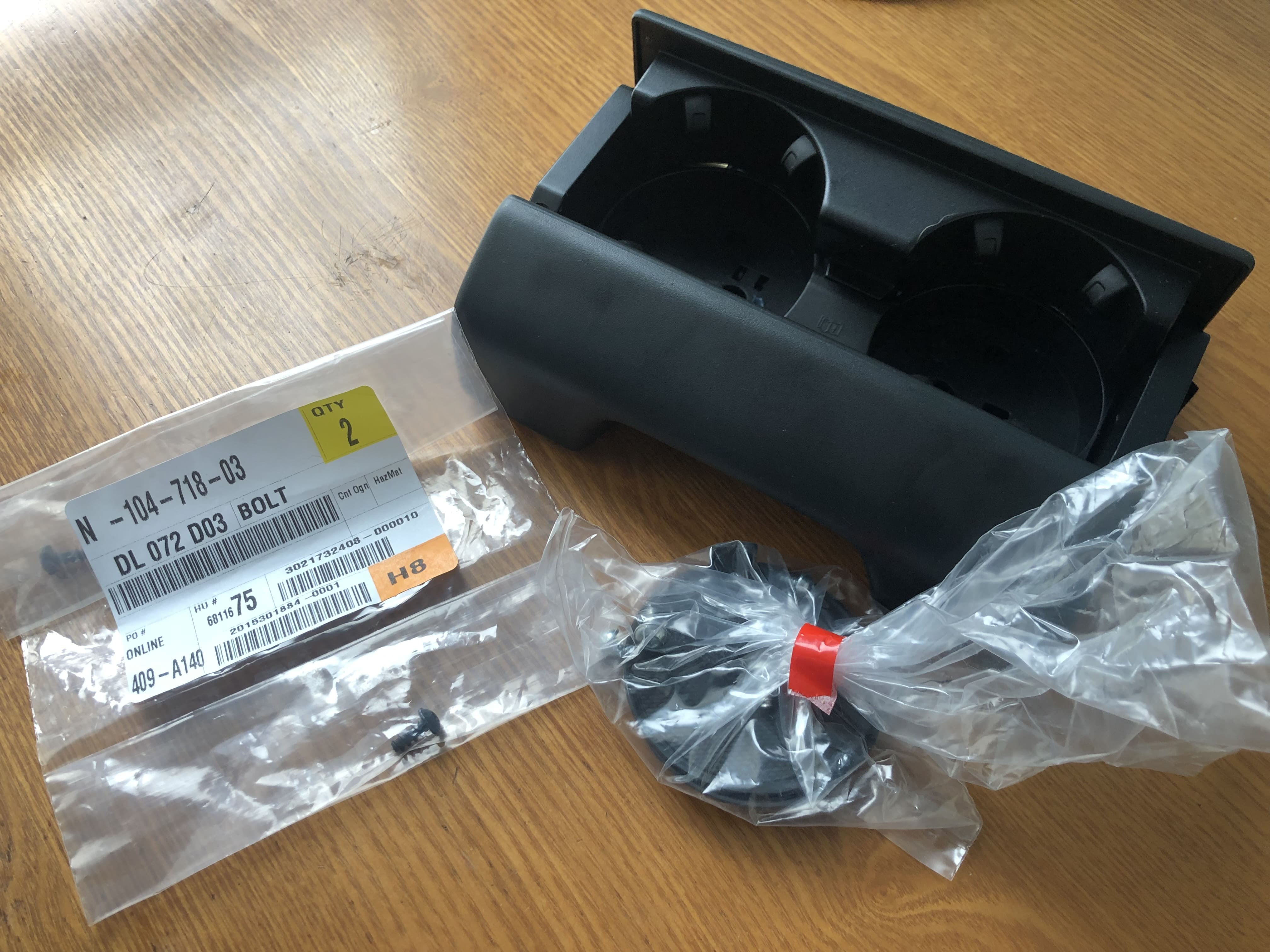

Parts Summary
One set of bolts (required), and the cupholder itself (black / fine cream).

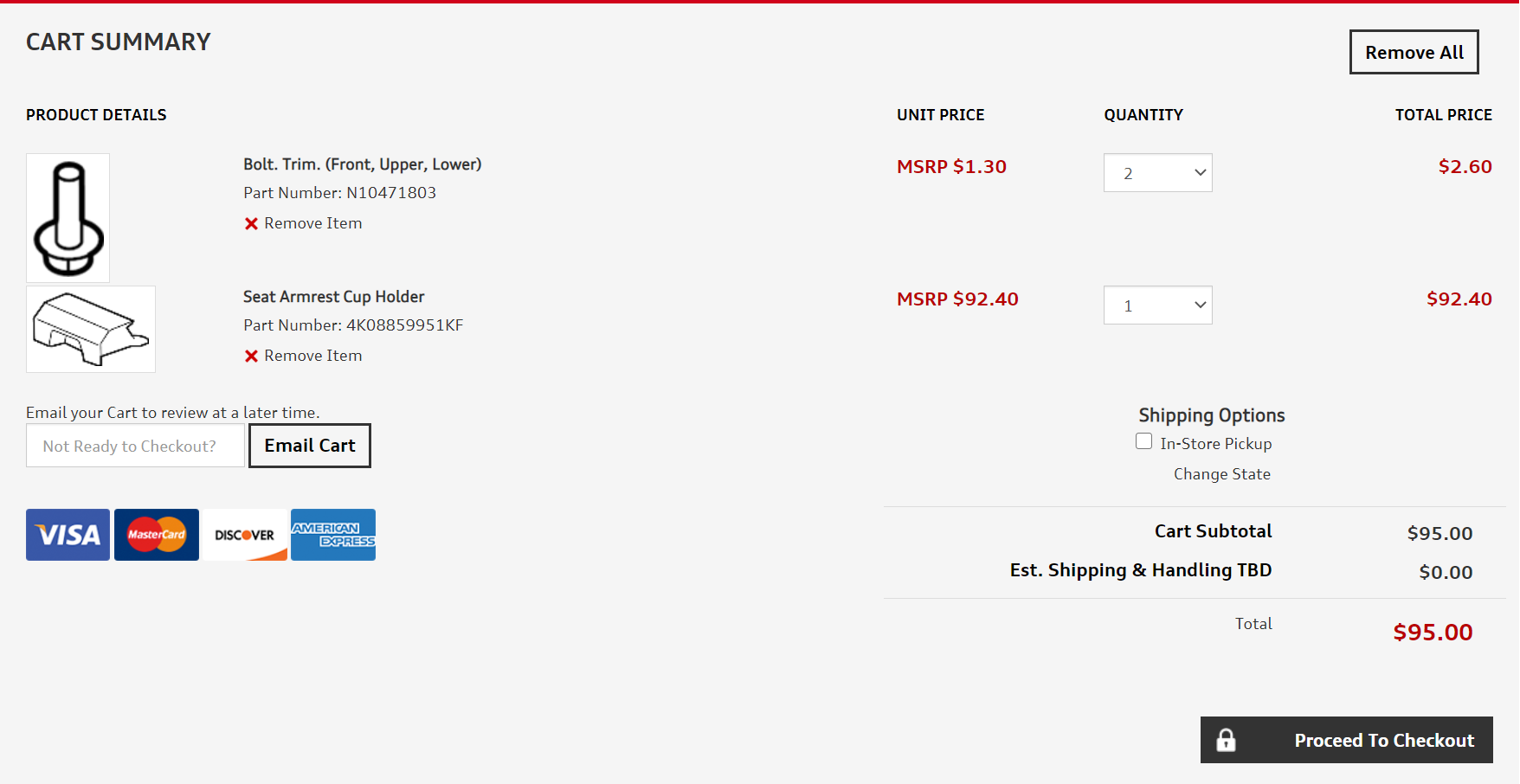

| Parts No. | Parts Name | Quantity | MSRP (USD) | Total |
|---|---|---|---|---|
| N10471803 | Bolt. Trim. (Front, Upper, Lower) | 2 | 1.30 | $2.60 |
| 4K08859951KF | Seat Armrest Cup Holder (Fine Cream) | 1 | 92.40 | $92.40 |
| 4K08859956PS | Seat Armrest Cup Holder (Black) | 1 | 92.40 | $92.40 |
| Total： | $95.00 |
Assembly Process

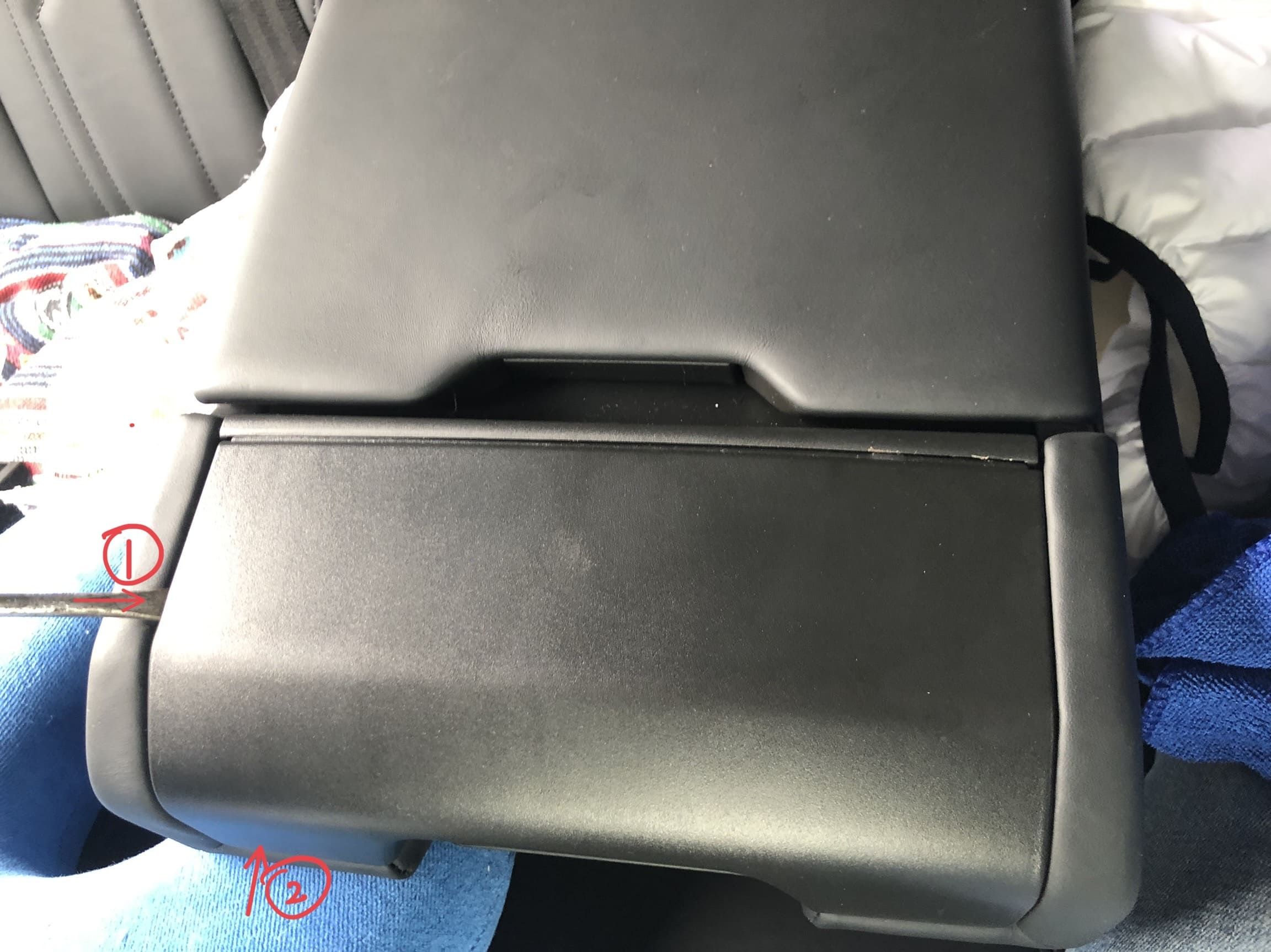

- Step One: Remove the original cover

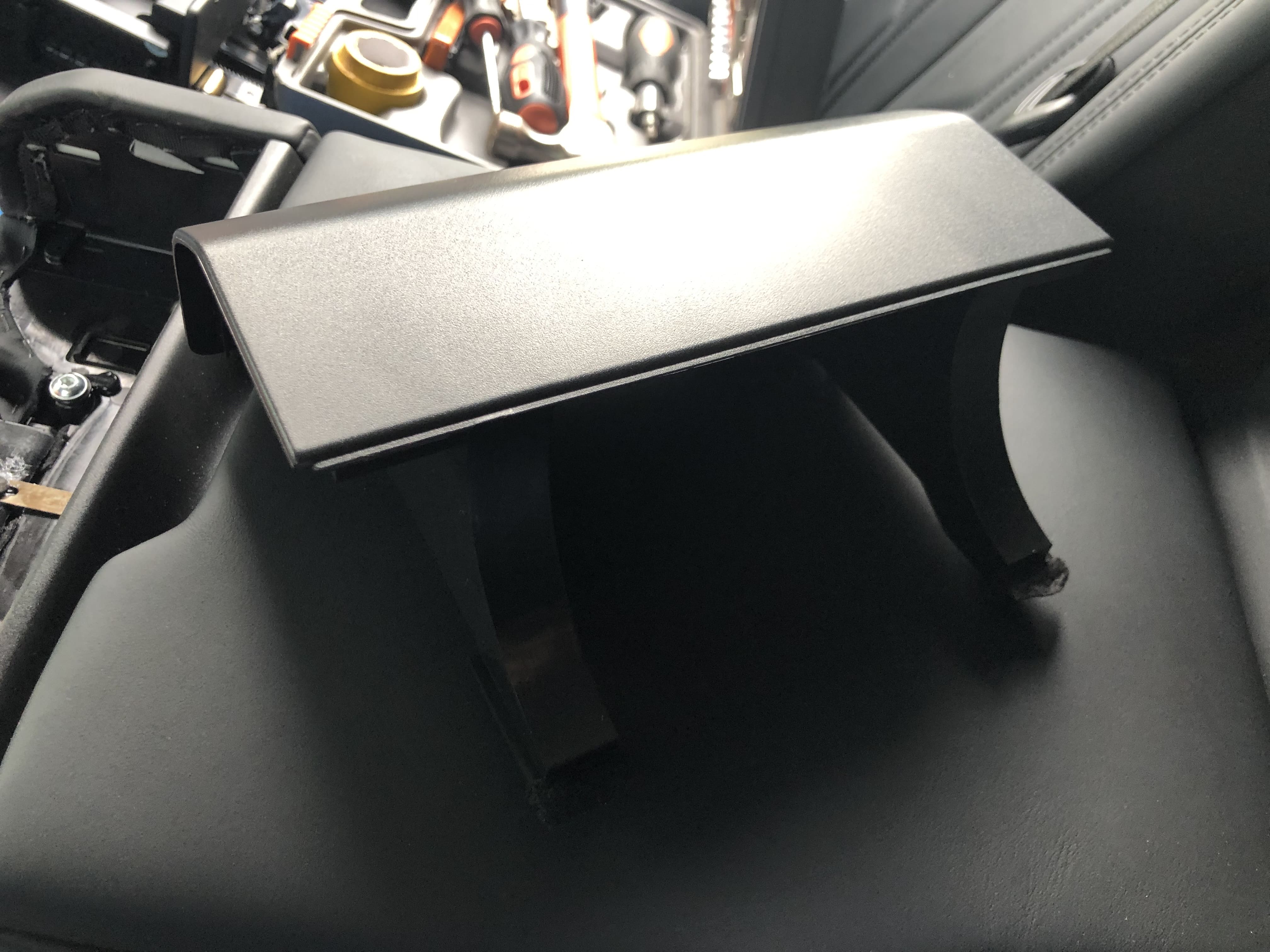

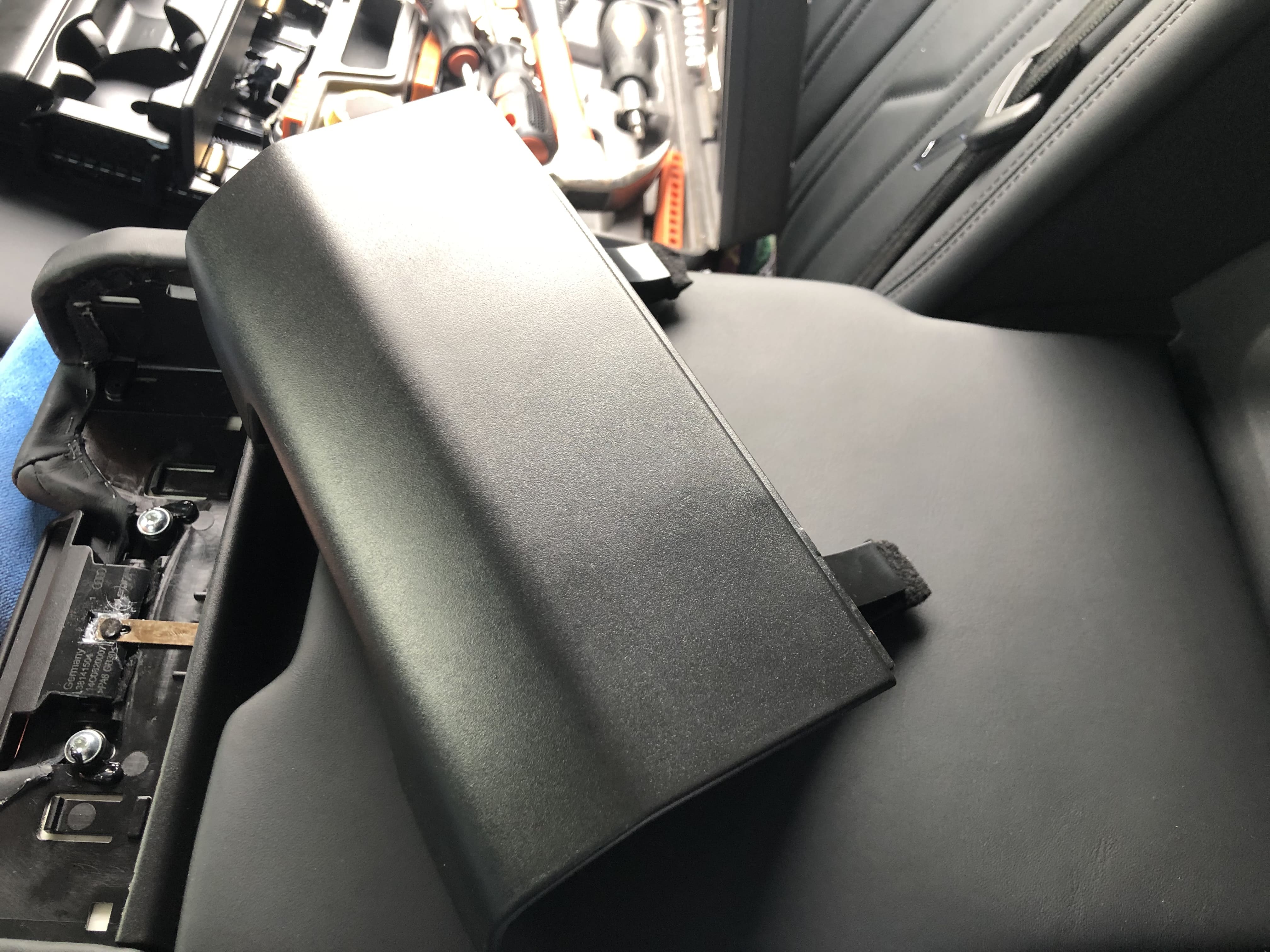

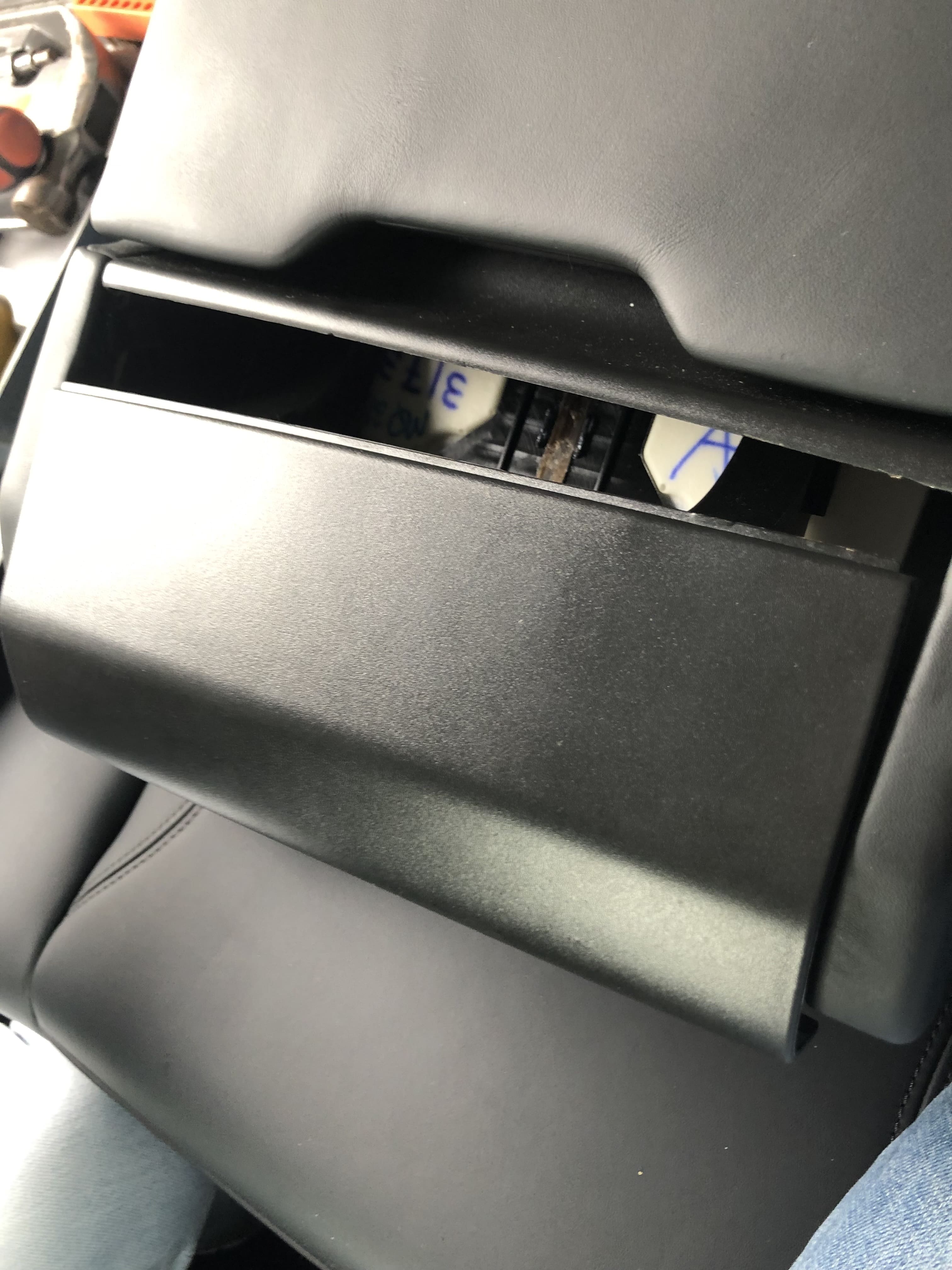

Insert a screwdriver from (1) to create a gap on the side of the cover, then insert a second scredriver from (2). Pry the cover upwards and it should come out easily. It is not screwed in and it is not glued in. See following pictures for removed parts.

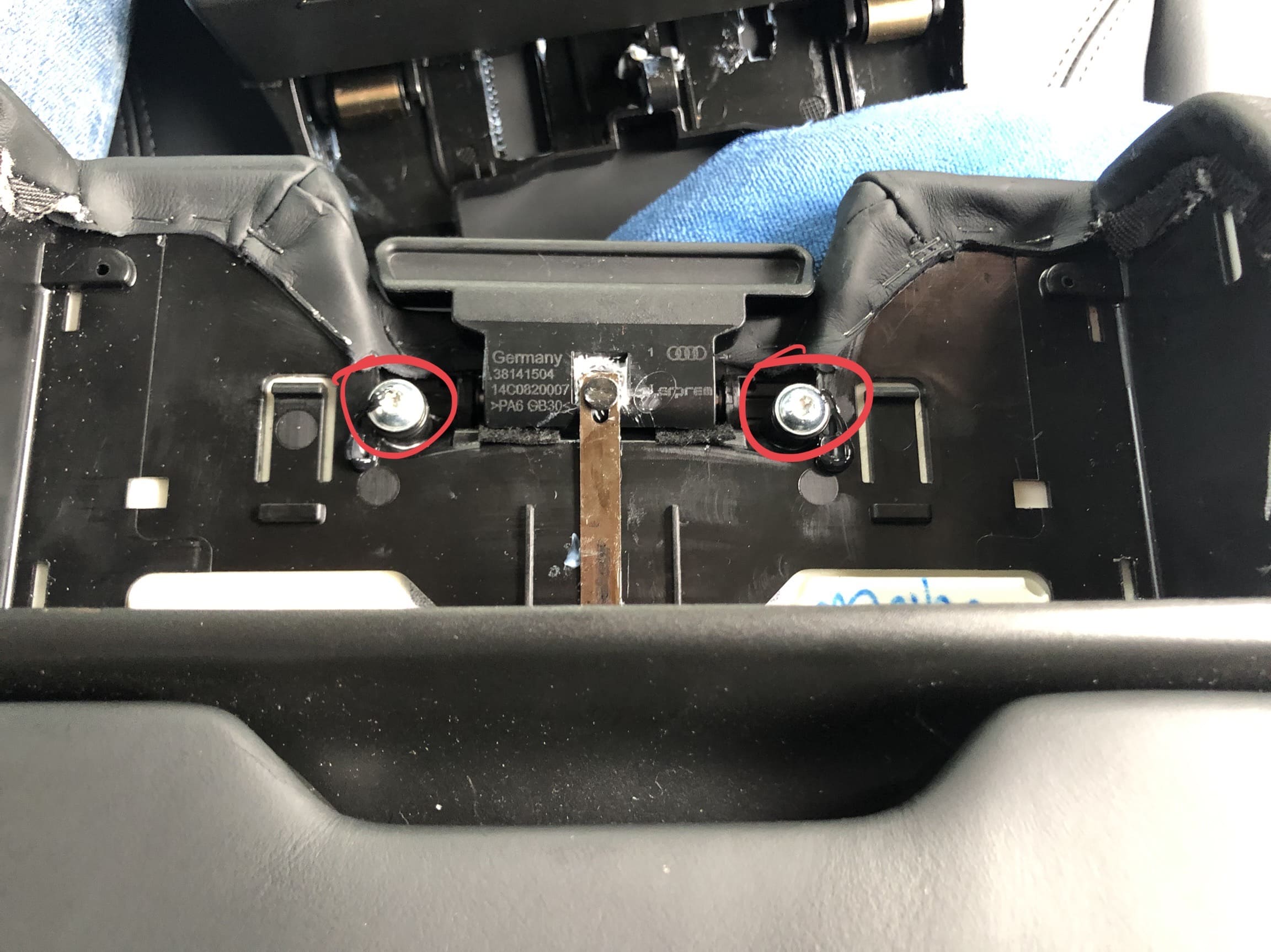

- Step Two: Remove the screws
Use torx screwdriver (not phillips or flathead) to remove the screws circled in red and throw them away.

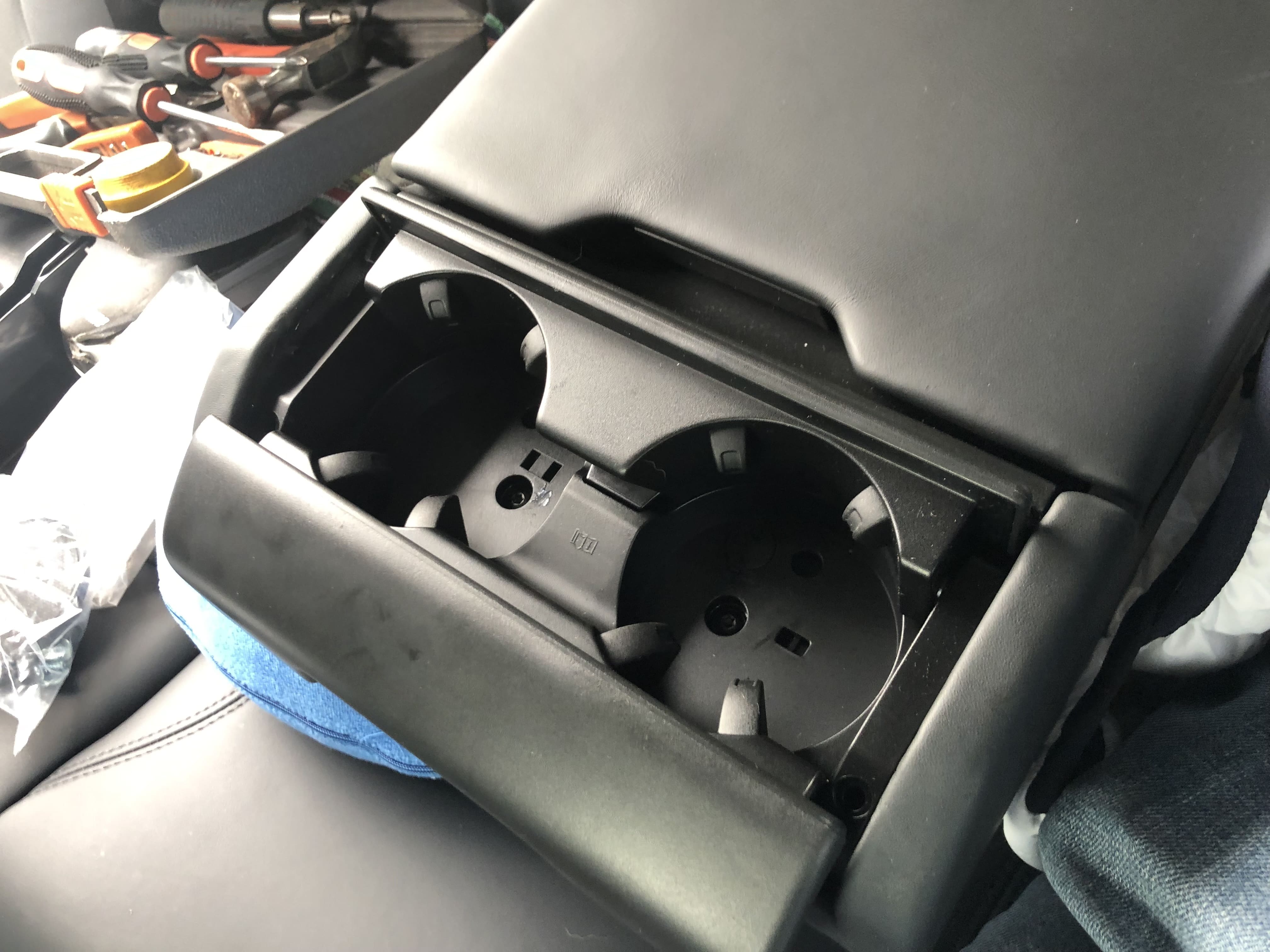

- Step Three: Put in the cupholder
Slide in the cupholder and open it up. Use torx screwdriver to screw in the longer screws that we bought (N10471803).

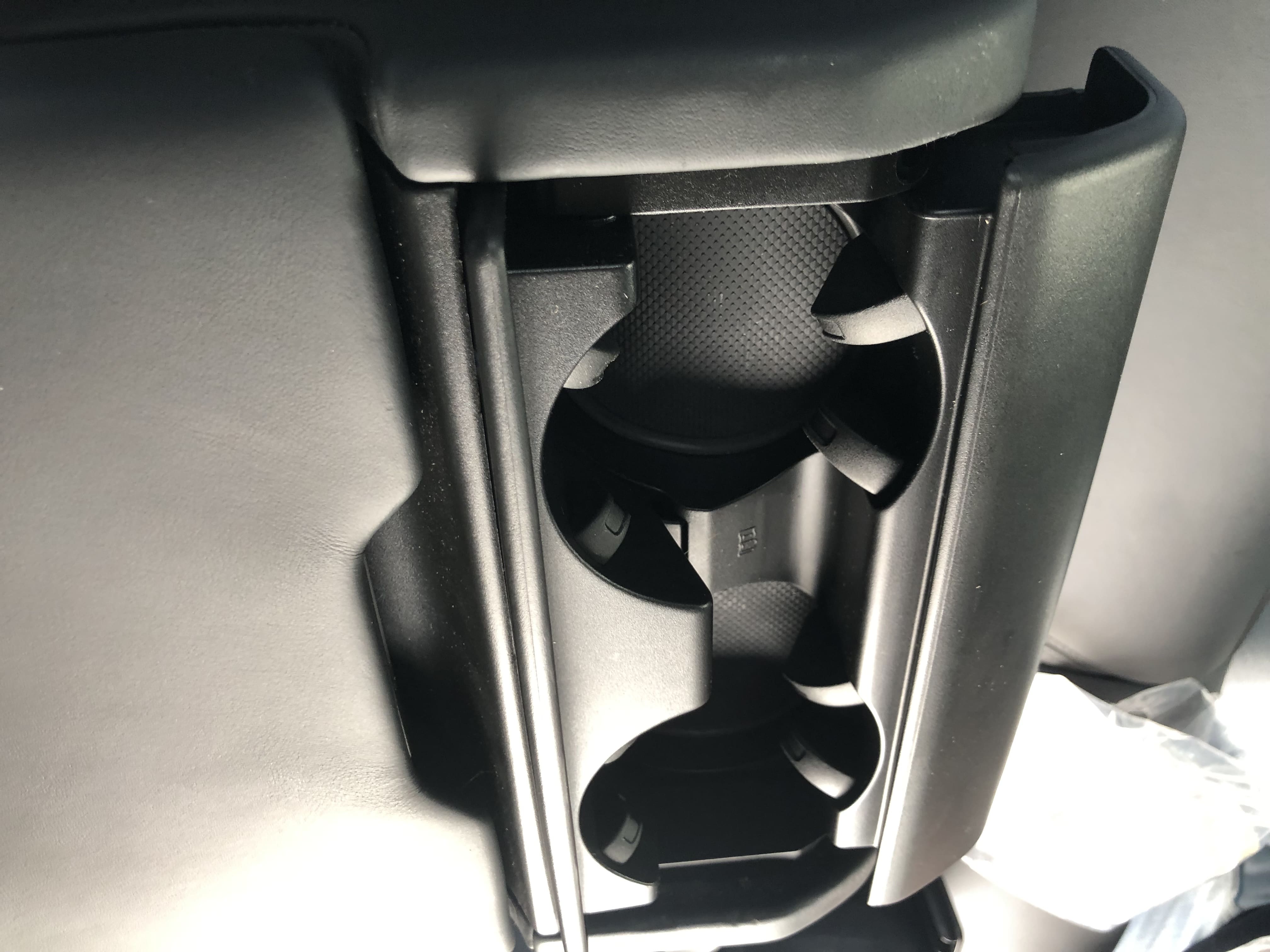

- Step Four: Finishing up
Cover the screw holes with included foams, put in the included cup coaster, and voila.
* 免责声明：本文及其中任何文字均仅为一般性的介绍。本网站与奥迪无任何关联。
* Disclaimer: This article and any content herein are general introduction for readers only. This website is not in any way affiliated with Audi AG.
